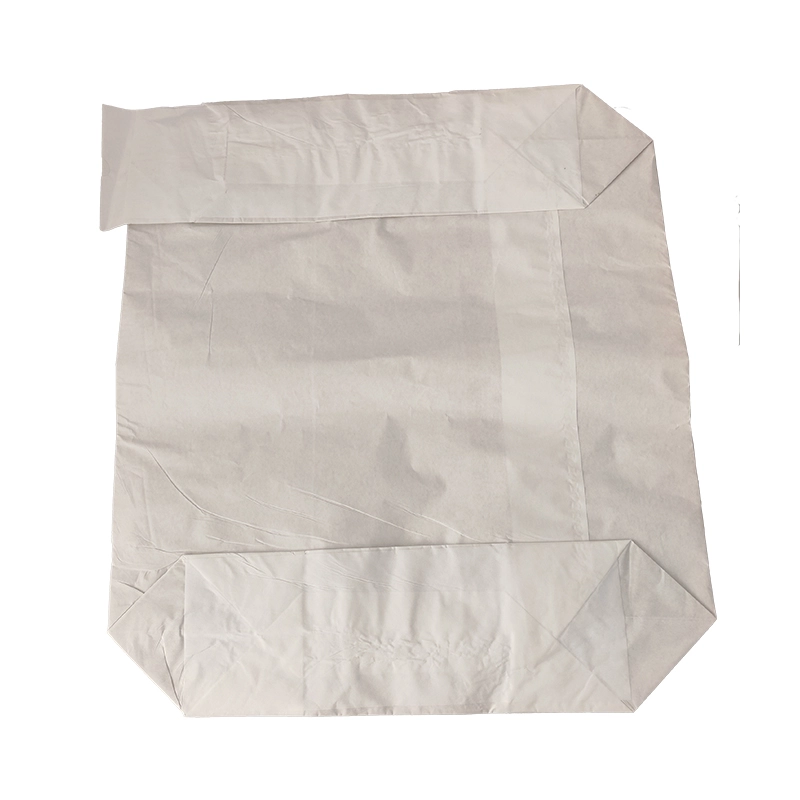

Laminated Composite Architecture
The structural design of the Waterproof Valve Paper Bag features a laminated composite that balances tensile strength, puncture resistance, and moisture protection. Key construction elements include:
- Substrate: High-strength kraft paper (40–70 lb) selected for tear resistance and dimensional stability under filling pressure.
- Coating: PE or PP film applied to the inner or outer surface, forming a continuous barrier with transmission rates suitable for hygroscopic materials.
- Bonding: Lamination process that ensures delamination resistance during stacking, handling, and transport.
- Ply Count: Configurable from 2 to 6 plies, allowing tailored strength and protection levels for specific load capacities (10–50 kg).
This composite approach not only protects contents from humidity and contamination but also provides a printable surface that accepts high-definition flexographic printing (up to 8 colors) for product identification, regulatory markings, and handling instructions.
Valve Port Engineering for Automated Filling
The integrated valve port is the defining feature of this packaging system. Unlike open-mouth bags that require manual closing, the Waterproof Valve Paper Bag incorporates a self-sealing valve designed for direct connection to spout packers, impeller packers, gravity packers, and air packers. Operational advantages include:
- Filling speeds 3–5× faster than traditional methods, reducing labor and increasing throughput.
- Automatic sealing upon filling completion, eliminating separate closing operations and minimizing dust leakage (<0.1% leakage rate).
- Compatibility with both free-flowing and fine powders, with valve dimensions customized to match specific equipment (tolerance ±1 mm).
Three valve configurations are available to meet diverse operational requirements:
| Valve Type | Configuration | Primary Application |
|---|---|---|
| Internal Valve | Sleeve positioned inside the bag body | Free-flowing powders, cement, dry mortar |
| External Valve | Sleeve extending outside the bag | Fine powders, food ingredients, chemical additives |
| Flat Port | Flush valve opening with bag surface | High-speed filling lines, granulated materials |
Dimensional & Material Customization
This packaging is manufactured to specifications that align with industrial packaging standards. Base materials include natural kraft, bleached kraft, and brown kraft, with PE (LDPE/HDPE) and PP film coatings available in various thicknesses. Dimensional ranges cover standard industrial formats:
| Parameter | Range |
|---|---|
| Width | 180–740 mm (7.5–27 in) |
| Length | 250–1310 mm (10–50 in) |
| Bottom | 70–250 mm (3–8 in) |
| Layer Count | 2–6 plies |
| Load Capacity | 10–50 kg (10–110 lb) |
Beyond size and material options, functional enhancements can be integrated, including anti-slip coatings for stack stability, perforation patterns for controlled air release during filling, and easy-open tear strips for efficient bag opening at the point of use.
Sector-Specific Applications
The Waterproof Valve Paper Bag serves multiple industrial sectors where moisture protection and filling efficiency are critical:
- Building Materials: Cement, gypsum powder, putty powder, dry mixed mortar, tile adhesive – the moisture barrier prevents premature setting and maintains material flow properties.
- Chemicals: Pigments, dyes, resin powders, mineral powders, fertilizers, feed additives – sealed valve closure prevents contamination and dust emissions.
- Food Industry: Starch, flour, seasonings, food additives – food-grade kraft and PE film composites comply with FDA standards for direct food contact.
- Agriculture: Seeds, animal feed, agricultural powders – maintains product integrity through varying humidity conditions during transport and storage.
Quality Assurance & Manufacturing Standards

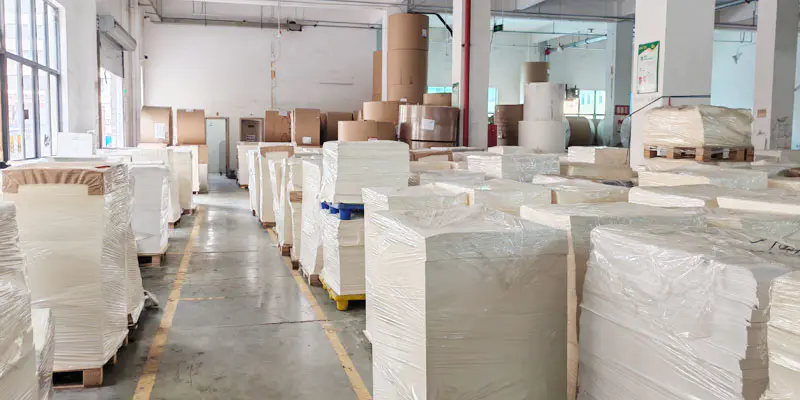

Manufacturing processes for the Waterproof Valve Paper Bag follow established quality control protocols to ensure consistency and reliability. Production involves raw material preparation, lamination, printing, cutting, heat sealing, and packaging stages. Verification includes:
- Dimensional inspection with precision measurement systems.
- Tensile strength testing per applicable industry standards.
- Sealing integrity verification for valve closure performance.
- Moisture barrier testing to confirm coating effectiveness.
- Print quality inspection for legibility and registration accuracy.
Facilities operate under quality management frameworks that include ISO 9001 certification, with statistical process control monitoring critical parameters throughout production and full traceability from raw material receipt to finished product shipment.
Why Choose This Packaging Solution
- Filling Efficiency: Valve port design eliminates separate closing steps, reducing labor requirements and increasing throughput on automated lines.
- Moisture Protection: PE/PP coating provides a continuous barrier against humidity, safeguarding moisture-sensitive materials throughout the supply chain.
- Stacking Stability: The bag forms a cubic shape upon filling, optimizing pallet utilization and reducing transport costs.
- Print Capability: Coated surface accepts high-resolution printing for product identification, regulatory compliance, and handling instructions.
- Material Efficiency: Reduced dust leakage minimizes waste, while the paper-based construction supports recycling at end of life.
Frequently Asked Questions
What moisture resistance level does this packaging provide?
The PE/PP coating provides a moisture barrier suitable for high-humidity transport and storage environments; additional HDPE layers can be incorporated for enhanced protection.
What filling equipment is compatible with the valve port?
Compatible with spout packers, gravity packers, impeller packers, air packers, screw packers, and grooved belt packers. Valve dimensions are customizable to match specific equipment.
Is this packaging suitable for food-grade applications?
Yes. Food-grade kraft paper and PE film composites are available, complying with FDA standards for direct food contact.
What printing capabilities are available?
Up to 8-color flexographic printing with 300 dpi resolution; the coated surface supports high-definition graphics and small text.
How is the valve sealed after filling?
The valve is self-sealing upon filling completion. Additional closure options include ultrasonic sealing, heat sealing, and manual sealing depending on the required sift-proofness.
Environmental Considerations
The Waterproof Valve Paper Bag is manufactured from paper-based materials with optional biodegradable PE film. The paper components are recyclable through standard paper recycling streams, supporting waste reduction objectives in industrial operations. The lightweight construction reduces transport weight compared to alternative formats, contributing to lower logistics emissions.
Engineered for performance, built for reliability – this packaging solution reflects the manufacturing expertise and quality commitment of Chenxing Packaging.
