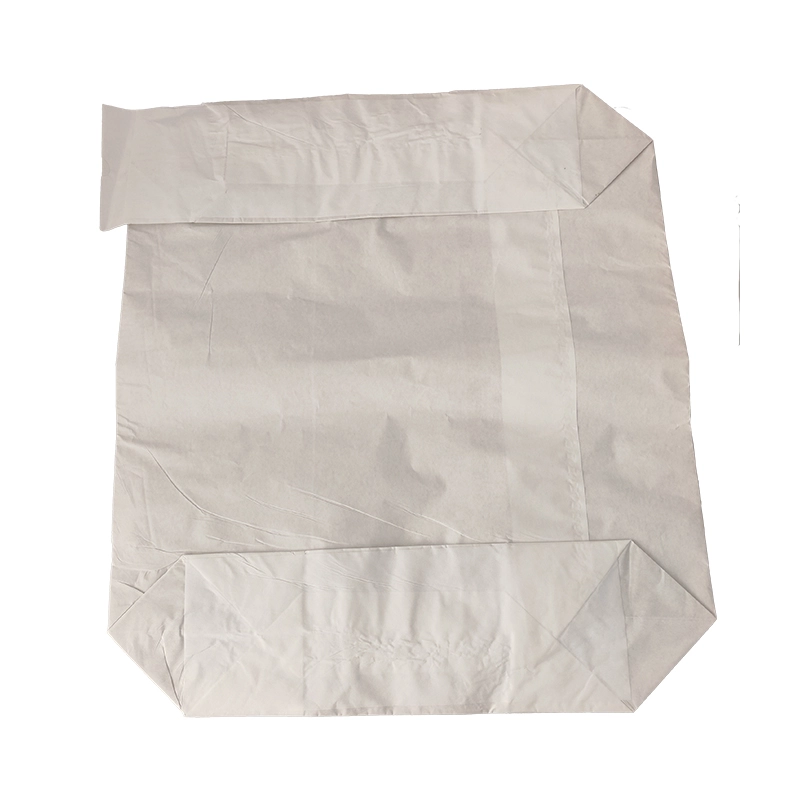

Laminated Valve Paper Bag

Operational continuity in powder handling depends on packaging that performs predictably under sustained mechanical stress. The Laminated Valve Paper Bag is engineered as a complete system—from material selection to valve geometry—to address the specific demands of automated filling environments. The laminated structure integrates a kraft paper base with a continuous PE/PP film layer, creating a controlled moisture transmission rate that protects hygroscopic contents without compromising filling speed. The valve port geometry is optimized for spout packers, impeller packers, and gravity packers, ensuring consistent seal integrity across thousands of filling cycles. This system is deployed across building material, chemical, food, and agricultural sectors where packaging failure translates directly to production downtime.

Layered Composite Engineering

The Laminated Valve Paper Bag employs a multi-ply construction where each layer serves a distinct functional role. The kraft paper substrate provides structural integrity and printability; the PE/PP coating delivers a moisture barrier; and the bonding interface ensures layer cohesion under dynamic loading. This configuration yields the following verified performance attributes:

• Tensile Strength: The kraft base maintains structural integrity under filling pressures up to 0.6 MPa.
• Moisture Vapor Transmission: Coating reduces WVTR to levels that preserve material flow properties in humid environments.
• Puncture Resistance: The laminated composite withstands handling impacts and stacking loads without compromise.
• Print Surface: The coated exterior supports high-definition flexographic printing for clear regulatory and branding marks.

Material selection includes natural kraft, bleached kraft, and brown kraft, with PE (LDPE/HDPE) and PP coatings available in thicknesses tailored to specific barrier requirements. Ply count ranges from 2 to 6, with load capacities spanning 10–50 kg.

Valve Port Configuration for Filling Line Integration

The self-sealing valve port is a critical interface between the packaging and the filling equipment. The design ensures:

• Direct engagement with spout packers, gravity packers, and impeller packers without adapters.
• Automatic closure upon filling completion, with leakage rates maintained below 0.1%.
• Dimensional precision within ±1 mm tolerance to ensure consistent machine interaction.

Three valve configurations are available, each suited to specific material characteristics and equipment types:

Customization Parameters

Standard industrial formats are accommodated within the following ranges, with non-standard dimensions available upon specification:

Additional features can be integrated without altering the core packaging geometry: anti-slip surface treatments for pallet stability, perforation lines for controlled venting during filling, and tear strips for easy opening at the point of use.

Application Mapping by Industry

The Laminated Valve Paper Bag is specified for materials where moisture exposure directly affects product quality or processability:

• Building Materials: Cement, gypsum, dry-mixed mortar, tile adhesives – the barrier prevents hydration reactions during storage.
• Chemicals: Pigments, resin powders, fertilizers, feed additives – sealed closure prevents cross-contamination and dust emissions.
• Food Ingredients: Starches, flours, seasonings, food additives – food-grade materials comply with relevant safety standards.
• Agriculture: Seeds, animal feed, agricultural powders – maintains viability and consistency through transport cycles.

Manufacturing Process & Quality Verification

Production follows a controlled sequence: raw material receiving → lamination → printing → die-cutting → heat sealing → valve insertion → final inspection. Quality checks are performed at each stage:

• Incoming Material: Tensile, grammage, and moisture content verification.
• In-Process: Lamination bond strength, print registration, and dimensional accuracy.
• Final Inspection: Valve seal integrity, closure performance, and finished dimensions.

Statistical process control monitors critical parameters, with records maintained for full traceability. The manufacturing system operates under ISO 9001-compliant quality management protocols.

Why This Packaging System

• Line Integration: Valve geometry is designed to match common filling equipment, reducing changeover time and adjustment requirements.
• Material Preservation: Moisture barrier properties are validated through standardized WVTR testing, ensuring consistent protection.
• Stack Efficiency: The filled bag forms a stable, square shape that optimizes pallet footprint and transport cube utilization.
• Surface Quality: The coating provides a consistent substrate for printing, maintaining legibility of handling marks and warnings.
• Waste Reduction: Low dust leakage during filling reduces material loss; paper components are compatible with existing recycling streams.

Frequently Asked Questions

How is the moisture barrier performance validated?
WVTR testing is conducted per ASTM standards to confirm coating effectiveness; additional HDPE layers can be applied for enhanced protection.

Which filling equipment is compatible?
Spout packers, gravity packers, impeller packers, air packers, screw packers, and grooved belt packers. Valve dimensions are customizable to the specific machine interface.

Are food-grade options available?
Yes. Food-grade kraft paper and PE films are available, with documentation to support safety compliance.

What is the maximum printing resolution?
Flexographic printing up to 8 colors at 300 dpi, providing clear reproduction of small text and graphics.

What closure methods are supported?
Self-sealing valve is standard; additional ultrasonic, heat, or manual sealing can be specified for extra sift-proofness.

Environmental Profile

This packaging is constructed from renewable paper fibers with a recyclable PE/PP film component. The paper portion is suitable for standard recycling streams; film can be separated where facilities exist. Lightweight construction reduces fuel consumption per unit transported, supporting logistics efficiency.

This packaging system represents the production capability and quality assurance of Chenxing Packaging.
